Dairy Gasket
A butterfly gasket is a type of gasket commonly used in butterfly valves, which are widely employed in dairy systems, as well as in other food processing, chemical, and pharmaceutical industries. These gaskets provide a seal between the butterfly valve and its mating surfaces to ensure that the valve operates properly and prevents leaks in the system.

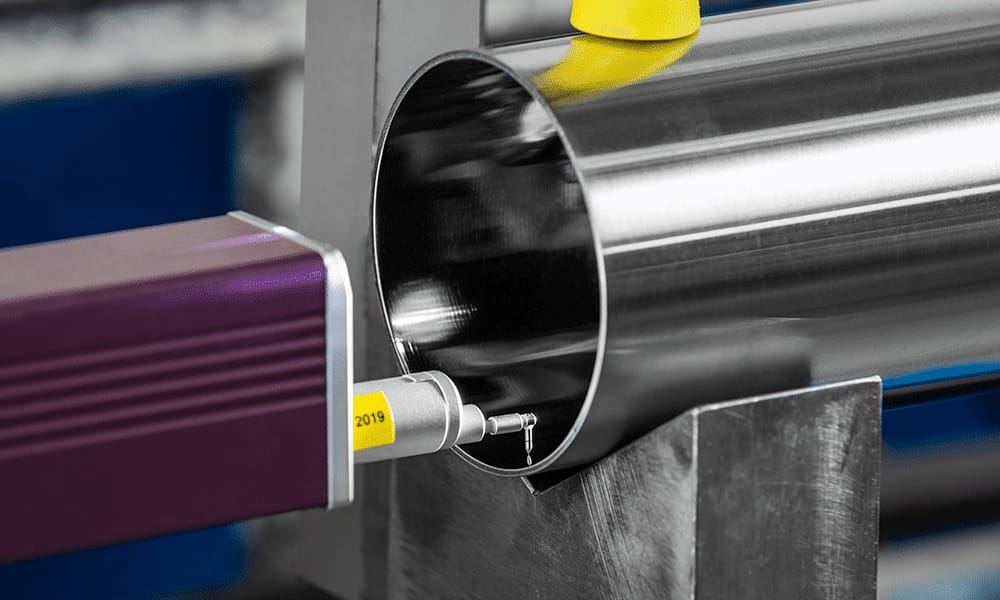

Stainless Steel Electro Polished Pipes
| Grades | 304, 304L, 304H, 321H, 321, 316, 316L, 316Ti, 310S, 347H UNS, 31803 Duplex |
|---|---|
| Size | 1/8" NB to 24" NB, 1/4" OD to 24" OD sizes stainless steel welded tubes also available |
| Length | Up to 6 meters, custom cut lengths |
| Thickness | 1mm to 20mm, SCH 5/5S, 10/10S, 20/20S, 40/40S, 80/80S, 120/120S, 160/160S as per ANSI B36.19/36.10 |

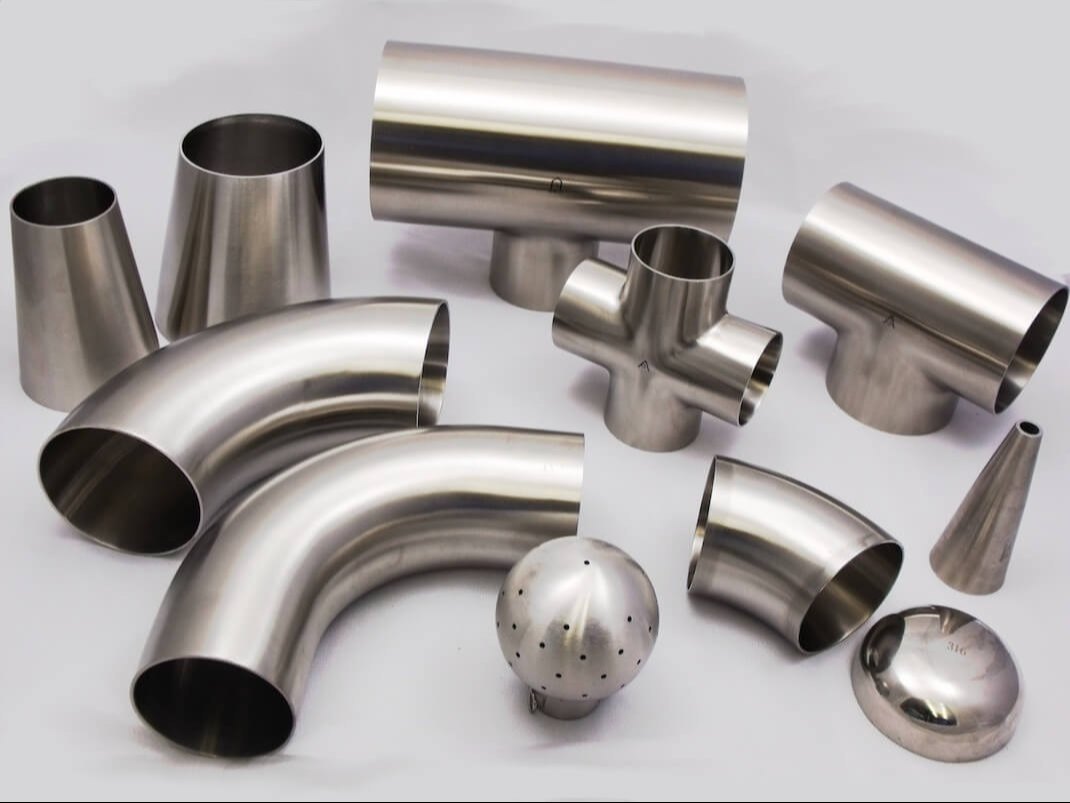

Electropolished Pipe Fittings
SS 304/304L electropolished pipe fitting and stainless steel 316/316L electropolished tubes are widely used for various applications including food processing, beverages, cosmetics, biotechnology, pharmaceuticals, pure water movement, high purity gases, vacuum, and semiconductors and are available in a size range of 1/2” up to 16”. Higher thickness electropolish pipes and tubes are also available on demand.

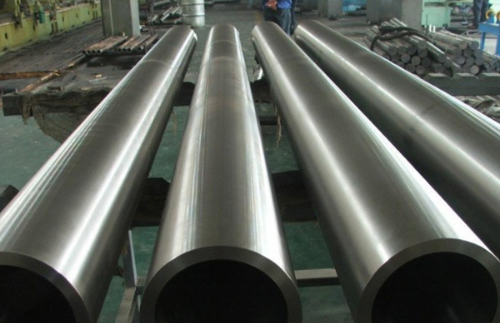

Electropolished Pipe Manufacturer
We ar producing a good vary of nickel-base alloy Butt we have a tendency told Fittings that ar obtainable to our purchasers in varied grades. nickel-base alloy Butt Weld Fittings ar obtainable in normal furthermore as made-to-order sizes as per the necessities of our purchasers.
| Range | 1/2″ NB to 48″ NB in SCH: 20, 30, 40S, 80S, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS (Available with NACE MR 01-75) |
|---|---|
| Form | Elbows in Long & Short Radius (45°, 90°, 180°), Equal & Unequal Tee, Barred Tee, Eccentric & Concentric Reducer, Caps, Crosses, Long & Short Stub End, Swage Nipples, Barrel Nipples |
| Standards | ASTM / ASME A/SA 234, ASTM / ASME SB 336 |
| Grade | UNS 2200 (Nickel 200 Elbow), UNS 2201 (Nickel 201 Elbow), UNS 4400 (Monel 400 Elbow), UNS 8020 (Alloy 20/20 CB 3), UNS 8825 (Alloy 825 Elbow), UNS 6600 (Inconel 600 Elbow), UNS 6601 (Inconel 601 Elbow), UNS 6625 (Inconel 625 Elbow), UNS 10276 (Hastelloy C276 Elbow) |
Equivalent Grades of Stainless Steel 304 Electropolish Pipes
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
|---|---|---|---|---|---|---|---|
| SS 304 | S30400 | 1.4301 | Z7CN18‐09 | X5CrNi18-10 | SUS 304 | 304S31 | 08Х18Н10 |
Chemical Composition of Stainless Steel 304 Electropolished Pipes
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
|---|---|---|---|---|---|---|---|---|---|
| 304 | 0.08 | 2.0 | 0.75 | 0.045 | 0.030 | 18.0–20.0 | - | 8.0–10.5 | 0.10 |
Stainless Steel 304 Electropolish Pipes Mechanical Properties
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness Rockwell B (HR B) max |
Hardness Brinell (HB) max |
|---|---|---|---|---|---|
| 304 | 515 | 205 | 40 | 92 | 201 |
Other Types of Electropolish Pipes
| Product Type | Product Description |
|---|---|
| 304 Stainless Steel Electropolish Pipes Exporter | SS 304 Electropolish Pipes Manufacturers |
| 304 Stainless Steel Electropolish Pipes | SS 304 Electro Polish Seamless Pipe |
| Stainless Steel 304 Electro Polish Welded Pipe | 304L Stainless Steel Electropolish ERW Pipes |
| SS 304 Electropolish SMLS Pipe | 304 SS Electropolished Pipes |
| Stainless Steel 304 EP Round Pipe | UNS S30400 Electropolish Pipes |
| Stainless Steel 1.4301 Electropolish Pipes | Stainless Steel 304 Electropolish SMLS Pipes |
| SS 304 Electrical Resistance Welding Pipe | 304 Stainless Steel Electropolish Tubes |
| 304 Electropolish Stainless Steel Pipes | 304 Stainless Steel EP Pipes |
| 304 Stainless Steel Electro Polish Welded Pipe | SS 304 Electropolish Pipes Suppliers |
