Dairy Fittings
Dairy fittings refer to the various components and accessories used in dairy farming or the dairy industry for milking, processing, and handling dairy products. These fittings are essential for ensuring hygiene, efficiency, and safety in the milking and processing systems.

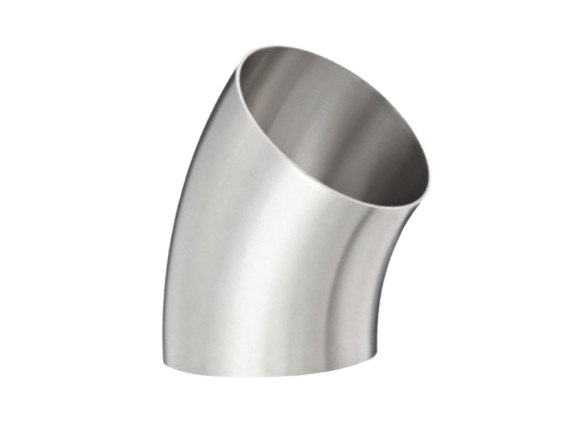

45° Bend
| Standard | ISO / DIN / TRICLOVER / IDF / SMS / BSP / NPT |
|---|---|
| Size Range | 1/2" NB to 4" NB |
| Material Grades | SS 304, 304L, 316, 316L, 310S, 321, 904L, Carbon Steel, etc. |
| Connection Type | SMS Clamp, Threaded, Flanged, or Welded, based on system requirements |
| Applications | Food & Beverage, Pharmaceuticals, Dairy, Chemical, Water Treatment |
| Pressure Rating | PN 6 to PN 40 |
| Temperature Range | -10°C to 120°C (EPDM), higher for Viton or PTFE |
| Angle | 45° for smooth directional changes in piping systems |

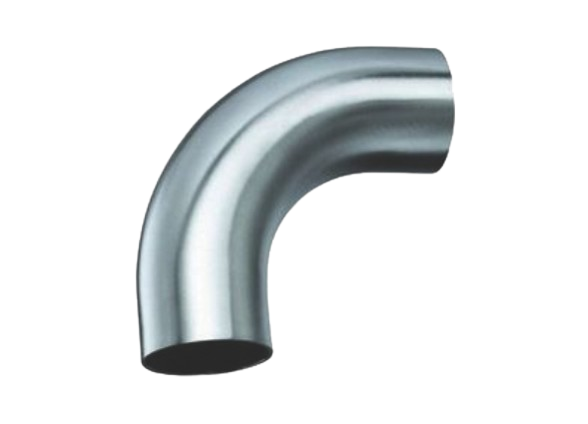

90° Bend
| Standard | ISO / DIN / TRICLOVER / IDF / SMS / BSP / NPT |
|---|---|
| Size Range | 1/2" NB to 4" NB |
| Material Grades | SS 304, 304L, 316, 316L, 310S, 321, 904L, Carbon Steel, etc. |
| Connection Type | SMS Clamp, Threaded, Flanged, or Welded depending on installation needs |
| Applications | Food & Beverage, Pharmaceuticals, Dairy, Water Treatment, Chemical Processing |
| Pressure Rating | PN 6 to PN 40 |
| Temperature Range | -10°C to 120°C (EPDM), higher for Viton or PTFE |
| Angle | 90° for sharp directional changes in piping systems |
.png)

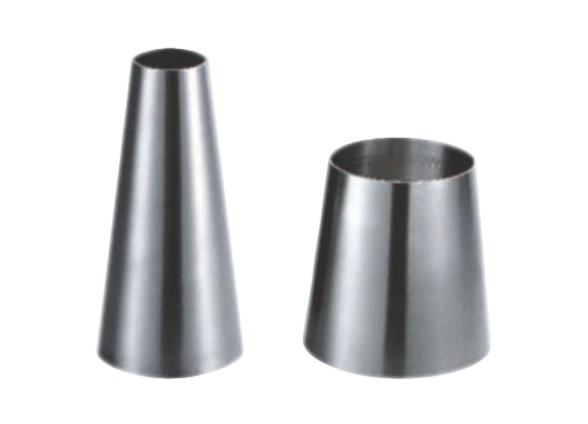

Con Reducer
| Standard | ISO / DIN / TRICLOVER / IDF / SMS / BSP / NPT |
|---|---|
| Size Range | 1/2" NB to 4" NB |
| Material Grades | SS 304, 304L, 316, 316L, 310S, 321, 904L, Carbon Steel, etc. |
| Connection Type | SMS Clamp, Threaded, Flanged, or Welded based on the system requirements |
| Applications | Food & Beverage, Pharmaceuticals, Dairy, Chemical Processing, Water Treatment |
| Pressure Rating | PN 6 to PN 40 |
| Temperature Range | -10°C to 120°C (EPDM), higher for Viton or PTFE |

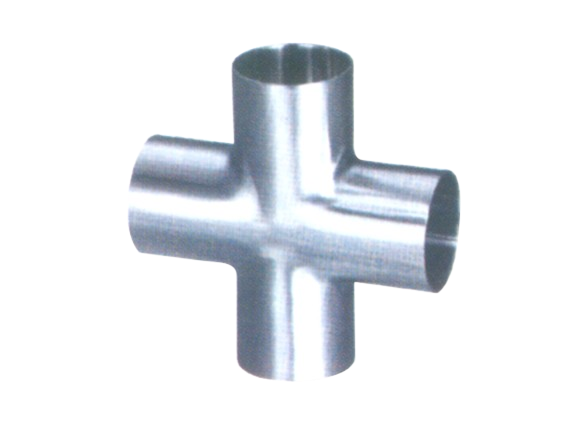

Cross Tee
| Standard | ISO / DIN / TRICLOVER / IDF / SMS / BSP / NPT |
|---|---|
| Size Range | 1/2" NB to 4" NB |
| Material Grades | SS 304, 304L, 316, 316L, 310S, 321, 904L, Carbon Steel, etc. |
| Connection Type | SMS Clamp, Threaded, Flanged, or Welded based on installation needs |
| Applications | Food & Beverage, Pharmaceuticals, Dairy, Water Treatment, Chemical Processing |
| Pressure Rating | PN 6 to PN 40 |
| Temperature Range | -10°C to 120°C (EPDM), higher for Viton or PTFE |

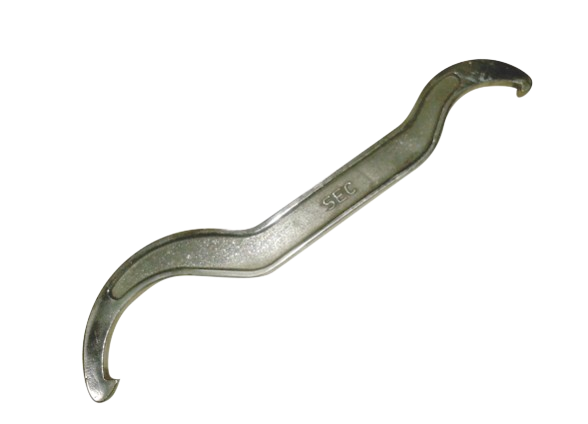

C-Spanner
| Standard | ISO / DIN / TRICLOVER / IDF / SMS / BSP / NPT |
|---|---|
| Size Range | Adjustable to suit a variety of sizes |
| Material Grades | Stainless Steel, Carbon Steel, Alloy Steel, etc. |
| Application | Used in industrial applications for tightening or loosening nuts, bolts, and other fasteners in piping systems |
| Pressure Rating | N/A (Mechanical tool, not for pressure handling) |
| Temperature Range | -10°C to 150°C (dependent on material used) |
| Function | Designed for easy adjustment of clamps and fittings in piping systems |
Ferrule Bend
| Standard | ISO / DIN / TRICLOVER / IDF / SMS / BSP / NPT |
|---|---|
| Size Range | 1/2" NB to 4" NB |
| Material Grades | SS 304, 304L, 316, 316L, 310S, 321, 904L, Carbon Steel, etc. |
| Connection Type | SMS Clamp, Threaded, Flanged, or Welded depending on installation needs |
| Applications | Food & Beverage, Pharmaceuticals, Dairy, Water Treatment, Chemical Processing |
| Pressure Rating | PN 6 to PN 40 |
| Temperature Range | -10°C to 120°C (EPDM), higher for Viton or PTFE |

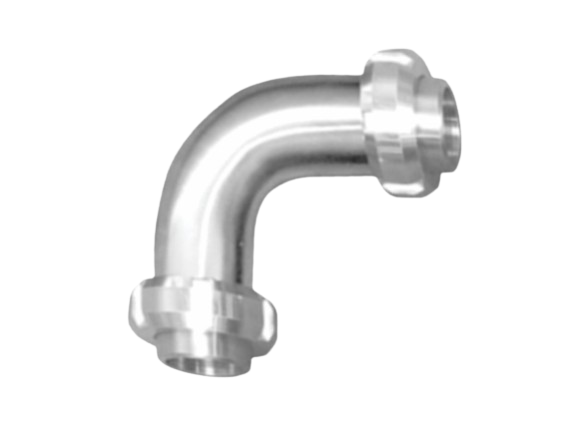

SMS-Bend
| Standard | ISO / DIN / TRICLOVER / IDF / SMS / BSP / NPT |
|---|---|
| Size Range | 1/2" NB to 4" NB |
| Material Grades | SS 304, 304L, 316, 316L, 310S, 321, 904L, Carbon Steel, etc. |
| Connection Type | SMS Clamp, Threaded, Flanged, or Welded depending on installation requirements |
| Applications | Food & Beverage, Pharmaceuticals, Dairy, Water Treatment, Chemical Processing |
| Pressure Rating | PN 6 to PN 40 |
| Temperature Range | -10°C to 120°C (EPDM), higher for Viton or PTFE |

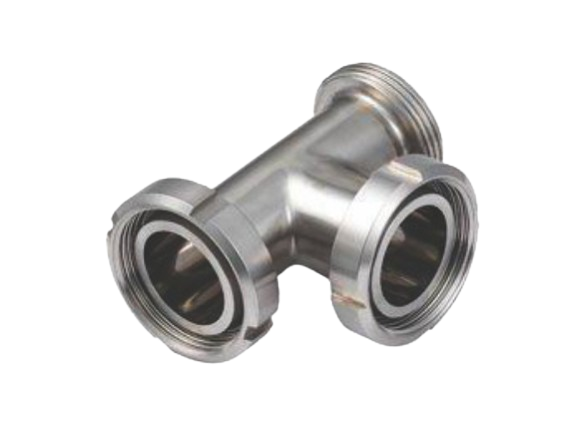

SMS-TEE
| Standard | ISO / DIN / TRICLOVER / IDF / SMS / BSP / NPT |
|---|---|
| Size Range | 1/2" NB to 4" NB |
| Material Grades | SS 304, 304L, 316, 316L, 310S, 321, 904L, etc. |
| Connection Type | SMS Threaded or Clamp — easy to install and clean |
| Applications | Dairy, Food & Beverage, Pharma, Biotech, Cosmetic Processing |
| Temperature & Pressure | -10°C to 120°C / PN 6 to PN 40 (based on seal & grade) |

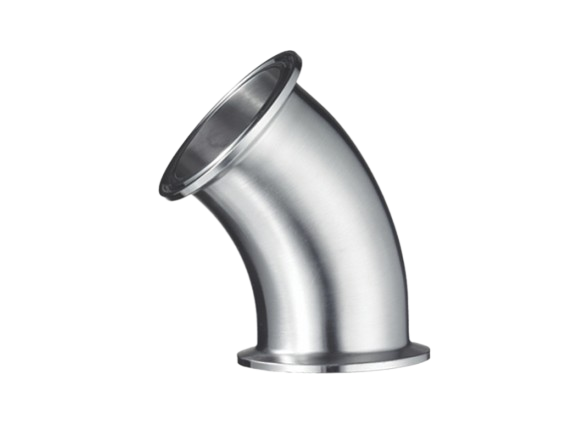

TC 45° Bend
| Standard | ISO / DIN / TRICLOVER / IDF / SMS / BSP / NPT |
|---|---|
| Size Range | 1/2" NB to 4" NB |
| Material Grades | SS 304, 304L, 316, 316L, 310S, 321, 904L, etc. |
| Connection Type | TC (Tri-Clamp) ends – quick fit, hygienic design |
| Applications | Food & Beverage, Dairy, Pharma, Biotech, Clean Process Lines |
| Temperature & Pressure | -10°C to 120°C / PN 6 to PN 40 (based on gasket and material) |

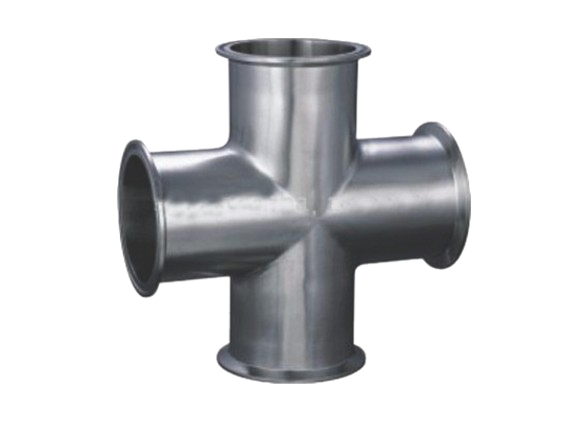

TC Cross TEE
| Standard | ISO / DIN / TRICLOVER / IDF / SMS / BSP / NPT |
|---|---|
| Size Range | 1/2" NB to 4" NB |
| Material Grades | SS 304, 304L, 316, 316L, 310S, 321, 904L, etc. |
| Connection Type | TC (Tri-Clamp) ends – hygienic, quick-release fittings |
| Applications | Food & Beverage, Dairy, Pharmaceutical, Biotech, Cosmetic Industries |
| Temperature & Pressure | -10°C to 120°C / PN 6 to PN 40 (depending on seal & steel grade) |

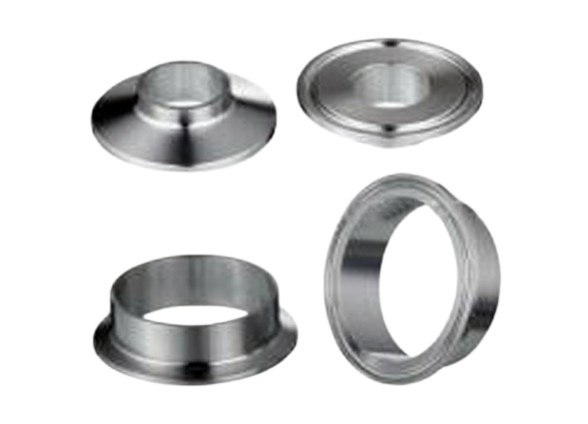

TC Ferrule
| Standard | ISO / DIN / TRICLOVER / IDF / SMS / BSP / NPT |
|---|---|
| Size Range | 1/2" NB to 4" NB |
| Material Grades | SS 304, 304L, 316, 316L, 310S, 321, 904L, etc. |
| Connection Type | TC (Tri-Clamp) weldable or clamp-on ferrule ends |
| Applications | Food & Beverage, Dairy, Pharmaceuticals, Biotech, Cleanroom Systems |
| Temperature & Pressure | -10°C to 120°C / PN 6 to PN 40 (based on seal & pipe compatibility) |
.png)

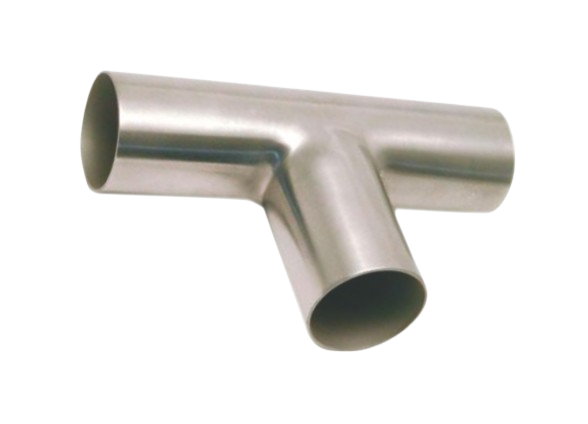

TC Plain
| Standard | ISO / DIN / TRICLOVER / IDF / SMS / BSP / NPT |
|---|---|
| Size Range | 1/2" NB to 4" NB |
| Material Grades | SS 304, 304L, 316, 316L, 310S, 321, 904L, etc. |
| Connection Type | Plain end for welding or further connection (weldable pipe end) |
| Applications | Food & Beverage, Dairy, Pharmaceuticals, Biotech, Chemical Processing |
| Temperature & Pressure | -10°C to 120°C / PN 6 to PN 40 (based on material grade) |
TC Reducer
| Standard | ISO / DIN / TRICLOVER / IDF / SMS / BSP / NPT |
|---|---|
| Size Range | 1/2" NB to 4" NB |
| Material Grades | SS 304, 304L, 316, 316L, 310S, 321, 904L, etc. |
| Connection Type | TC (Tri-Clamp) ends – quick-release and hygienic design |
| Applications | Food & Beverage, Dairy, Pharmaceutical, Biotech, Chemical Processing |
| Temperature & Pressure | -10°C to 120°C / PN 6 to PN 40 (depending on material grade & seal type) |
.png)

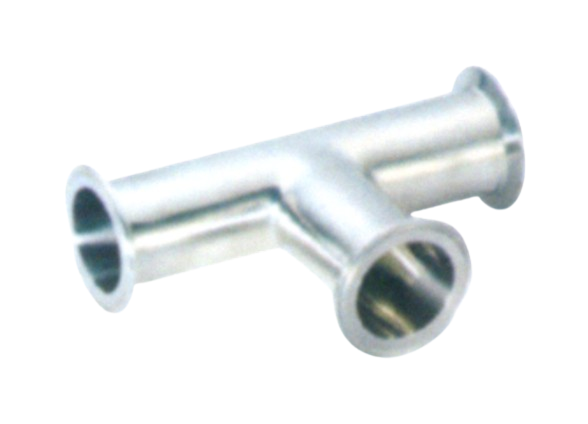

TC TEE
| Standard | ISO / DIN / TRICLOVER / IDF / SMS / BSP / NPT |
|---|---|
| Size Range | 1/2" NB to 4" NB |
| Material Grades | SS 304, 304L, 316, 316L, 310S, 321, 904L, etc. |
| Connection Type | TC (Tri-Clamp) ends – hygienic, quick-fit connections |
| Applications | Food & Beverage, Dairy, Pharmaceutical, Biotech, Chemical Processing |
| Temperature & Pressure | -10°C to 120°C / PN 6 to PN 40 (depending on material & seal) |

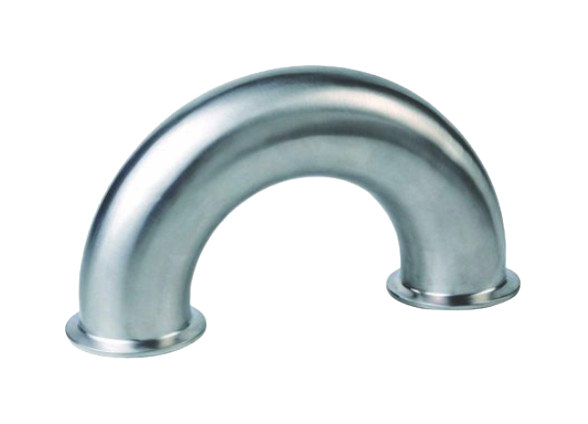

TC U-BEND
| Standard | ISO / DIN / TRICLOVER / IDF / SMS / BSP / NPT |
|---|---|
| Size Range | 1/2" NB to 4" NB |
| Material Grades | SS 304, 304L, 316, 316L, 310S, 321, 904L, etc. |
| Connection Type | TC (Tri-Clamp) ends – hygienic, quick-release connections |
| Applications | Food & Beverage, Dairy, Pharmaceutical, Biotech, Chemical Processing |
| Temperature & Pressure | -10°C to 120°C / PN 6 to PN 40 (depending on material grade & seal) |

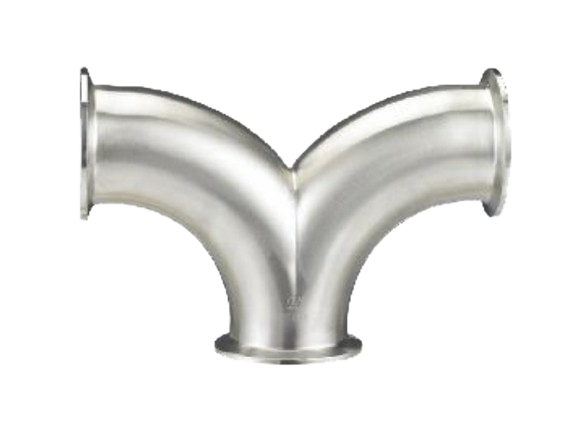

TC Y-Bend
| Standard | ISO / DIN / TRICLOVER / IDF / SMS / BSP / NPT |
|---|---|
| Size Range | 1/2" NB to 4" NB |
| Material Grades | SS 304, 304L, 316, 316L, 310S, 321, 904L, etc. |
| Connection Type | TC (Tri-Clamp) ends – hygienic, quick-fit connections |
| Applications | Food & Beverage, Dairy, Pharmaceutical, Biotech, Chemical Processing |
| Temperature & Pressure | -10°C to 120°C / PN 6 to PN 40 (depending on material & seal) |
.png)

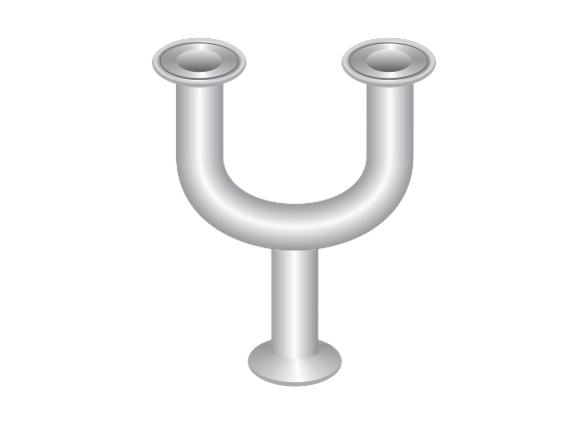

TC Y-Loop
| Standard | ISO / DIN / TRICLOVER / IDF / SMS / BSP / NPT |
|---|---|
| Size Range | 1/2" NB to 4" NB |
| Material Grades | SS 304, 304L, 316, 316L, 310S, 321, 904L, etc. |
| Connection Type | TC (Tri-Clamp) ends – hygienic, quick-fit connections |
| Applications | Food & Beverage, Dairy, Pharmaceutical, Biotech, Chemical Processing |
| Temperature & Pressure | -10°C to 120°C / PN 6 to PN 40 (depending on material & seal) |

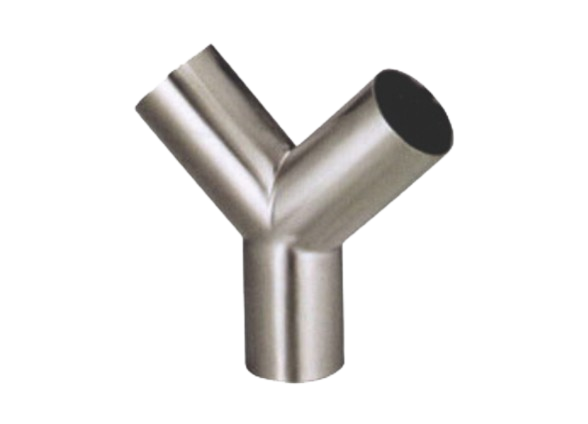

Y-Bend Plain
| Standard | ISO / DIN / TRICLOVER / IDF / SMS / BSP / NPT |
|---|---|
| Size Range | 1/2" NB to 4" NB |
| Material Grades | SS 304, 304L, 316, 316L, 310S, 321, 904L, etc. |
| Connection Type | Plain end for welding or further connection (weldable pipe end) |
| Applications | Food & Beverage, Dairy, Pharmaceutical, Biotech, Chemical Processing |
| Temperature & Pressure | -10°C to 120°C / PN 6 to PN 40 (based on material grade) |
