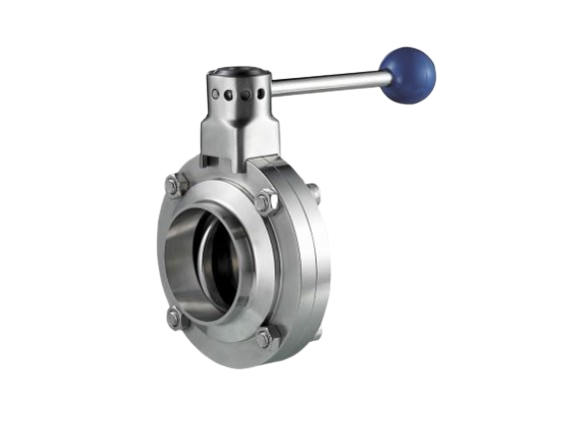

Butterfly Valve
A butterfly valve is a type of flow control device commonly used to regulate or isolate fluid flow in piping systems. It gets its name from the way its disc operates — resembling a butterfly’s wings when opening and closing.

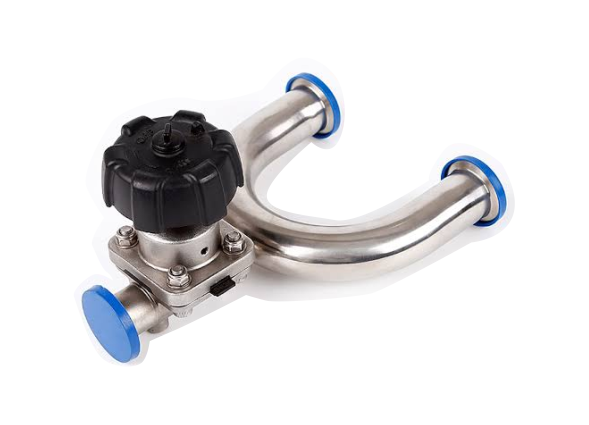

U Type Diaphragm Valve
| Stainless Steel | AISI 304, 304L, 316, 316L, 310, 317, 317L, 321, 347, 904L etc. |
|---|---|
| Carbon Steel | A105, A216, Gr. WCB, Cadmium Plated, Nickel, chrome Plated etc |
| Non-Ferrous Metal | Copper, Brass, Titanium, Phosphorous Bronze etc. |
| Applications | Corrosive fluids, slurries, hygienic/clean media |
| Pressure Rating | PN 6 to PN 16 |
| Sealing | Bubble-tight, diaphragm seals against weir (no leakage) |
Butterfly Vlave Welded
| Stainless Steel | AISI 304, 304L, 316, 316L, 310, 317, 317L, 321, 347, 904L etc. |
|---|---|
| Carbon Steel | A105, A216 Gr. WCB, Cadmium Plated, Nickel, Chrome Plated etc. |
| Non-Ferrous Metal | Copper, Brass, Titanium, Phosphorous Bronze etc. |
| Connection Type | Welded end (permanent installation, no flanges or bolts) |
| Applications | Chemical, Oil & Gas, Water Treatment, High-Pressure Industrial Systems |
| Pressure Rating | PN 10 to PN 40 |

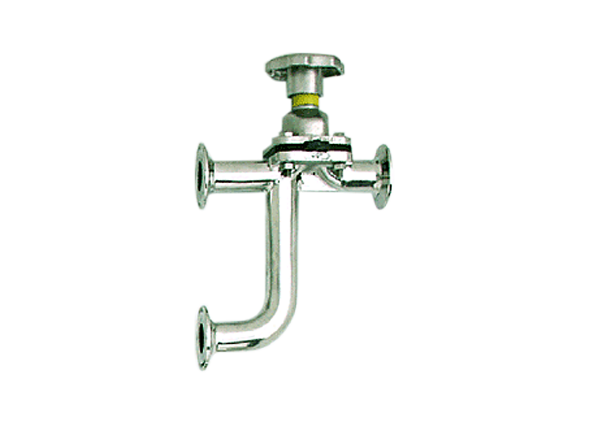

Zero DEAD VALVE
| Stainless Steel | AISI 304, 304L, 316, 316L, 310, 317, 317L, 321, 347, 904L etc. |
|---|---|
| Carbon Steel | A105, A216 Gr. WCB, Cadmium Plated, Nickel, Chrome Plated etc. |
| Non-Ferrous Metal | Copper, Brass, Titanium, Phosphorous Bronze etc. |
| Connection Type | Clamp, Welded, or Threaded (as per sanitary design) |
| Applications | Pharmaceutical, Biotech, Food & Beverage, Clean-In-Place (CIP) Systems |
| Pressure Rating | PN 6 to PN 16 |

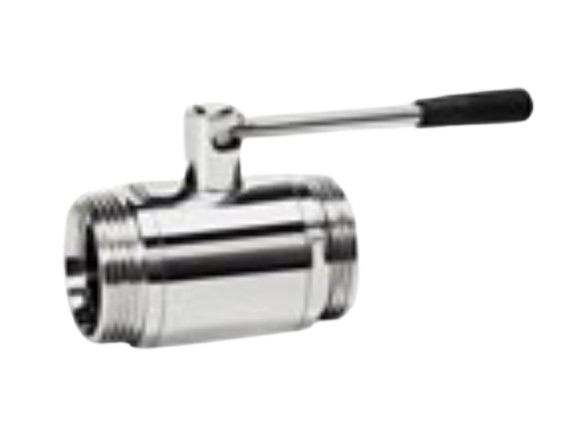

SMS BALL VALVE
| Stainless Steel | AISI 304, 304L, 316, 316L, 310, 317, 317L, 321, 347, 904L etc. |
|---|---|
| Carbon Steel | A105, A216 Gr. WCB, Cadmium Plated, Nickel, Chrome Plated etc. |
| Non-Ferrous Metal | Copper, Brass, Titanium, Phosphorous Bronze etc. |
| Connection Type | SMS Standard Threads with quick coupling options |
| Operation | Manual handle or pneumatic actuator for automated control |
| Features | Hygienic design, easy disassembly, suitable for CIP/SIP systems |

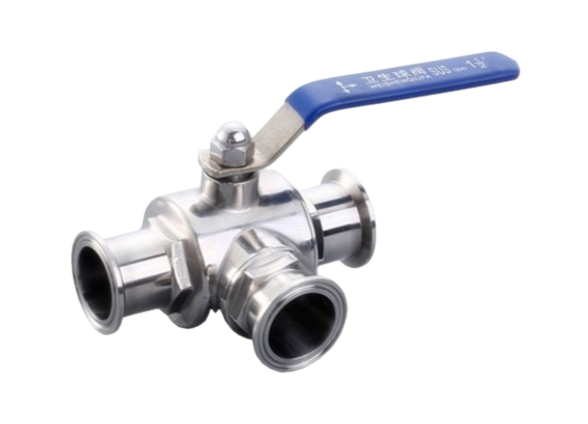

TC Ball Valve 3 Way
| Stainless Steel | AISI 304, 304L, 316, 316L, 310, 317, 317L, 321, 347, 904L etc. |
|---|---|
| Carbon Steel | A105, A216 Gr. WCB, Cadmium Plated, Nickel, Chrome Plated etc. |
| Non-Ferrous Metal | Copper, Brass, Titanium, Phosphorous Bronze etc. |
| Flow Configuration | L-Port or T-Port for diverting, mixing, or shutoff flow paths |
| End Connection | Sanitary Tri-Clamp (TC) for quick installation and removal |
| Pressure Rating | PN 6 to PN 40, depending on material and application |
.png)

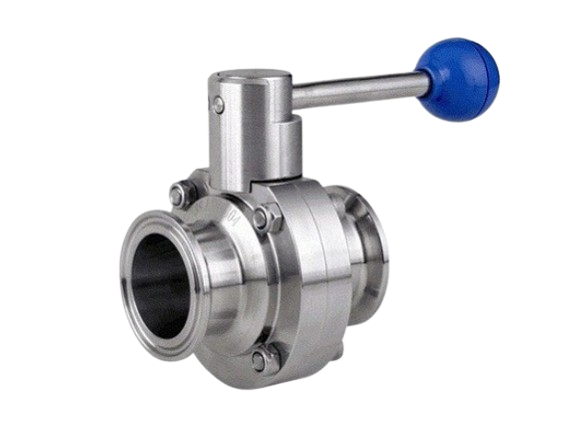

TC Butterfly Valve
| Stainless Steel | AISI 304, 304L, 316, 316L, 310, 317, 317L, 321, 347, 904L etc. |
|---|---|
| Carbon Steel | A105, A216 Gr. WCB, Cadmium Plated, Nickel, Chrome Plated etc. |
| Non-Ferrous Metal | Copper, Brass, Titanium, Phosphorous Bronze etc. |
| Design | Wafer, lug-style design, or double flange for easy installation |
| Applications | Food & Beverage, Pharmaceuticals, Dairy, Chemical Processing |
| Pressure Rating | PN 10 to PN 40 |

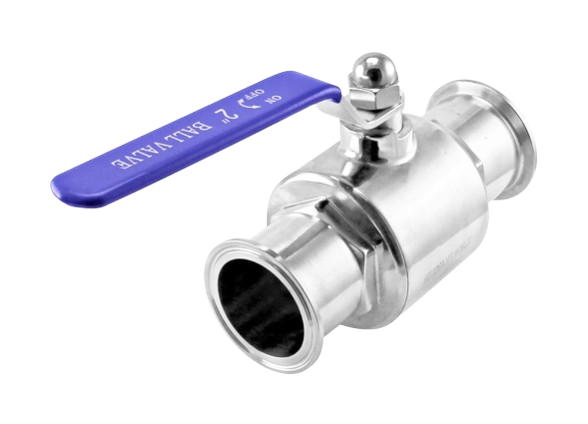

TC End Ball Valve
| Stainless Steel | AISI 304, 304L, 316, 316L, 310, 317, 317L, 321, 347, 904L etc. |
|---|---|
| Carbon Steel | A105, A216 Gr. WCB, Cadmium Plated, Nickel, Chrome Plated etc. |
| Non-Ferrous Metal | Copper, Brass, Titanium, Phosphorous Bronze etc. |
| Connection Type | Tri-Clamp (TC) for easy installation and disassembly |
| Applications | Food & Beverage, Pharmaceuticals, Biotech, Dairy Processing |
| Pressure Rating | PN 10 to PN 40 |

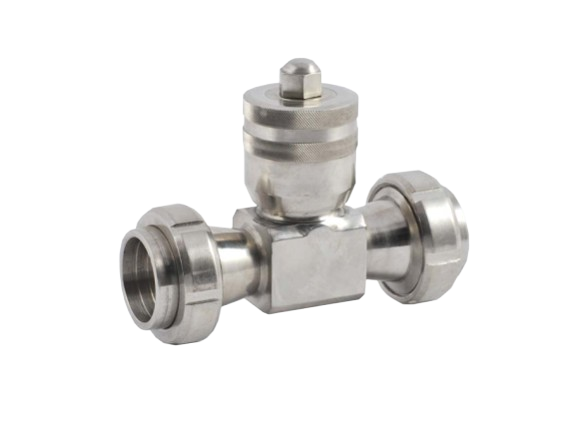

Micro Valve with Union
| Stainless Steel | AISI 304, 304L, 316, 316L, 310, 317, 317L, 321, 347, 904L etc. |
|---|---|
| Carbon Steel | A105, A216 Gr. WCB, Cadmium Plated, Nickel, Chrome Plated etc. |
| Non-Ferrous Metal | Copper, Brass, Titanium, Phosphorous Bronze etc. |
| Size Range | Typically DN 6 to DN 25 (small diameter for precise flow control) |
| Applications | Medical, Pharmaceutical, Food & Beverage, Lab Equipment, Clean Media |
| Pressure Rating | PN 10 to PN 40 |

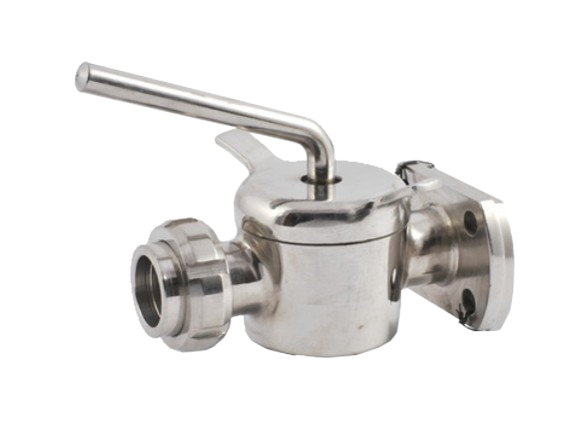

Tanker Valve
| Stainless Steel | AISI 304, 304L, 316, 316L, 310, 317, 317L, 321, 347, 904L etc. |
|---|---|
| Carbon Steel | A105, A216 Gr. WCB, Cadmium Plated, Nickel, Chrome Plated etc. |
| Non-Ferrous Metal | Copper, Brass, Titanium, Phosphorous Bronze etc. |
| Connection Type | Flanged, Threaded, Camlock, or Welded (depending on tanker type) |
| Applications | Tanker trucks, Chemical transport, Fuel transport, Liquid bulk transportation |
| Pressure Rating | PN 10 to PN 40 |
.png)

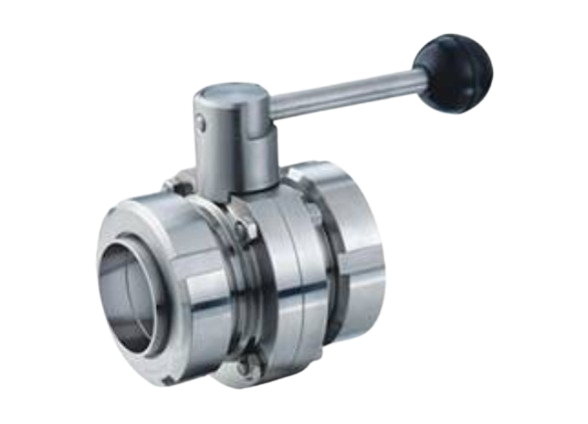

Butterfly Valve with Union
| Stainless Steel | AISI 304, 304L, 316, 316L, 310, 317, 317L, 321, 347, 904L etc. |
|---|---|
| Carbon Steel | A105, A216 Gr. WCB, Cadmium Plated, Nickel, Chrome Plated etc. |
| Non-Ferrous Metal | Copper, Brass, Titanium, Phosphorous Bronze etc. |
| Connection Type | Union connection for quick installation and easy disassembly |
| Applications | Food & Beverage, Pharmaceuticals, Dairy, Water Treatment |
| Pressure Rating | PN 10 to PN 40 |

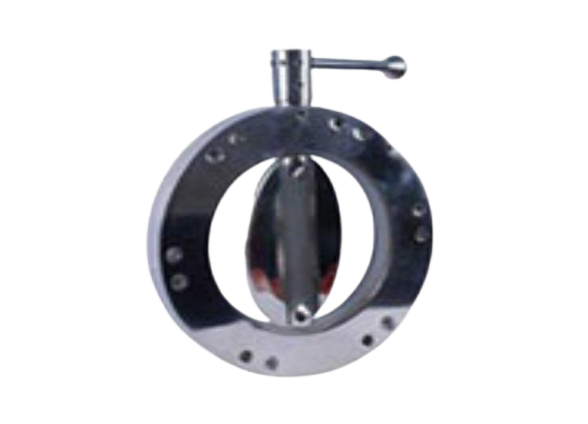

Butterfly Valve Sandwich Type
| Stainless Steel | AISI 304, 304L, 316, 316L, 310, 317, 317L, 321, 347, 904L etc. |
|---|---|
| Carbon Steel | A105, A216 Gr. WCB, Cadmium Plated, Nickel, Chrome Plated etc. |
| Non-Ferrous Metal | Copper, Brass, Titanium, Phosphorous Bronze etc. |
| Connection Type | Sandwich design, flanged connections on both sides for easy installation |
| Applications | Water Treatment, Oil & Gas, HVAC, Industrial Piping Systems |
| Pressure Rating | PN 6 to PN 16 |

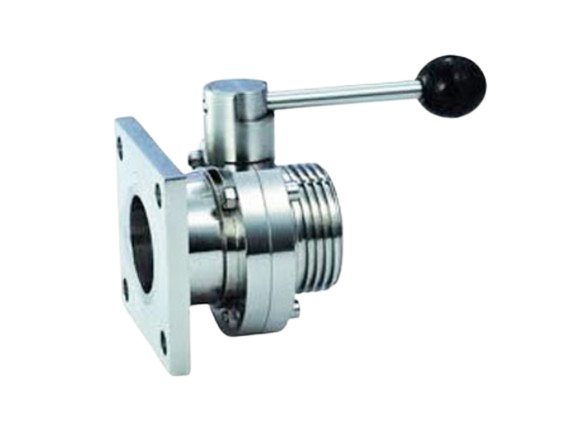

Tanker Valve with SMS Union
| Stainless Steel | AISI 304, 304L, 316, 316L, 310, 317, 317L, 321, 347, 904L etc. |
|---|---|
| Carbon Steel | A105, A216 Gr. WCB, Cadmium Plated, Nickel, Chrome Plated etc. |
| Non-Ferrous Metal | Copper, Brass, Titanium, Phosphorous Bronze etc. |
| Connection Type | SMS Union for secure, sanitary connections |
| Applications | Tanker trucks, Chemical transport, Food & Beverage, Pharmaceutical |
| Pressure Rating | PN 10 to PN 40 |

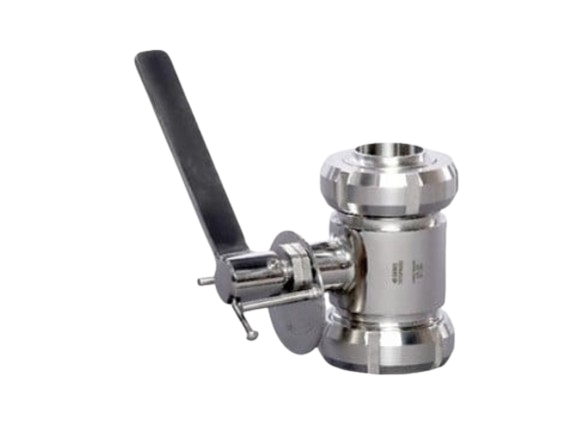

Flow Control Valve
| Stainless Steel | AISI 304, 304L, 316, 316L, 310, 317, 317L, 321, 347, 904L etc. |
|---|---|
| Carbon Steel | A105, A216 Gr. WCB, Cadmium Plated, Nickel, Chrome Plated etc. |
| Non-Ferrous Metal | Copper, Brass, Titanium, Phosphorous Bronze etc. |
| Connection Type | Threaded, Flanged, or Welded (depending on system requirements) |
| Applications | Water Treatment, HVAC, Oil & Gas, Chemical Processing, Industrial Systems |
| Pressure Rating | PN 6 to PN 40 |

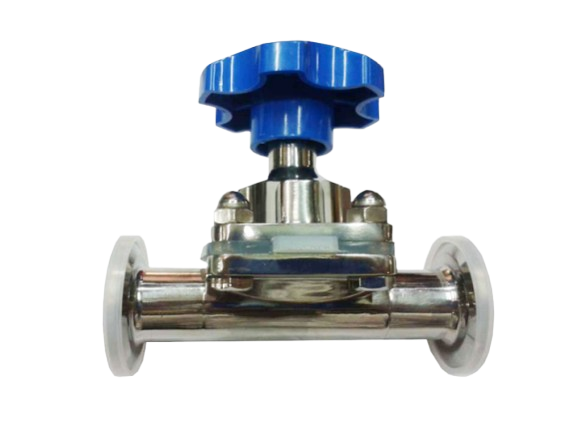

Diaphragm valve
| Stainless Steel | AISI 304, 304L, 316, 316L, 310, 317, 317L, 321, 347, 904L etc. |
|---|---|
| Carbon Steel | A105, A216 Gr. WCB, Cadmium Plated, Nickel, Chrome Plated etc. |
| Non-Ferrous Metal | Copper, Brass, Titanium, Phosphorous Bronze etc. |
| Connection Type | Flanged, Threaded, or Welded connections (depending on system setup) |
| Applications | Pharmaceutical, Food & Beverage, Chemical, Water Treatment |
| Pressure Rating | PN 6 to PN 16 |

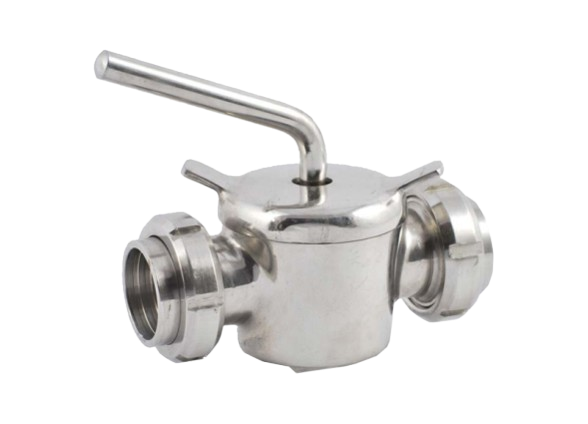

Two Way Valve (SMS)
| Material Grades | AISI 304, 316, 316L, SS 304L, SS 316L, SS 310, SS 904L |
|---|---|
| Connection Type | SMS Threaded, SMS Clamp, or Welded |
| Seal Type | EPDM, PTFE, Viton, or Silicone |
| Applications | Food & Beverage, Dairy, Pharmaceutical, Biotech |
| Pressure Rating | PN 10 to PN 40 |
| Temperature Range | -10°C to 120°C (EPDM), higher for Viton or PTFE |

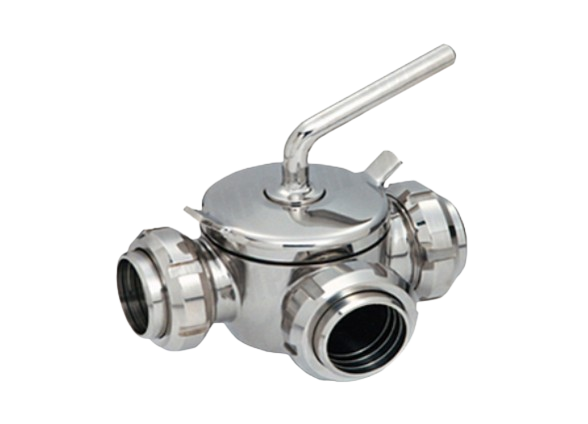

Three Way Valve (SMS)
| Material Grades | AISI 304, 316, 316L, SS 304L, SS 316L, SS 310, SS 904L |
|---|---|
| Connection Type | SMS Threaded, SMS Clamp, or Welded |
| Seal Type | EPDM, PTFE, Viton, or Silicone |
| Applications | Dairy, Food & Beverage, Pharmaceuticals, Biotech |
| Pressure Rating | PN 10 to PN 40 |
| Temperature Range | -10°C to 120°C (EPDM), higher for Viton or PTFE |
